Since the pipe of the last time is over

This time we will add the hose part

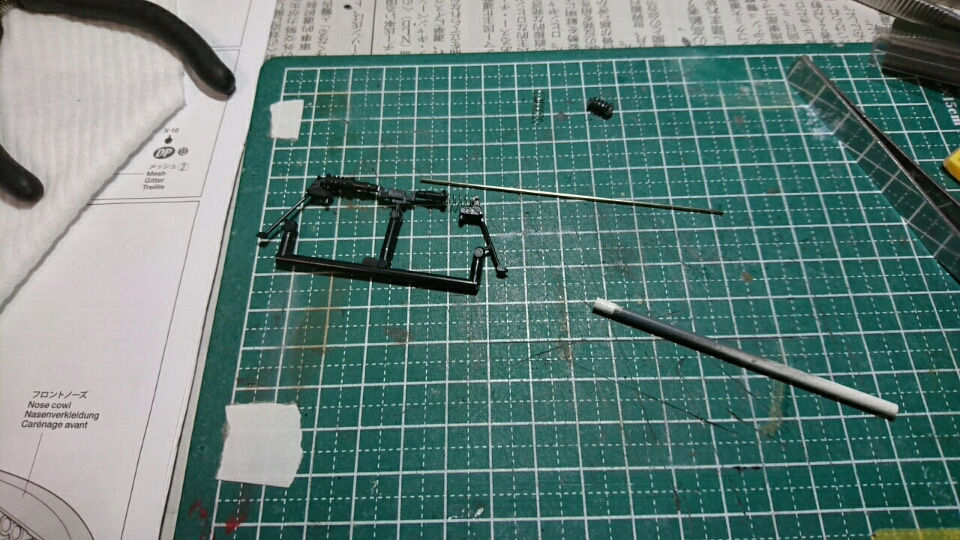

I made a hole of 1 mm in a 1.5 mm hose-like metal so that the brass wire enters

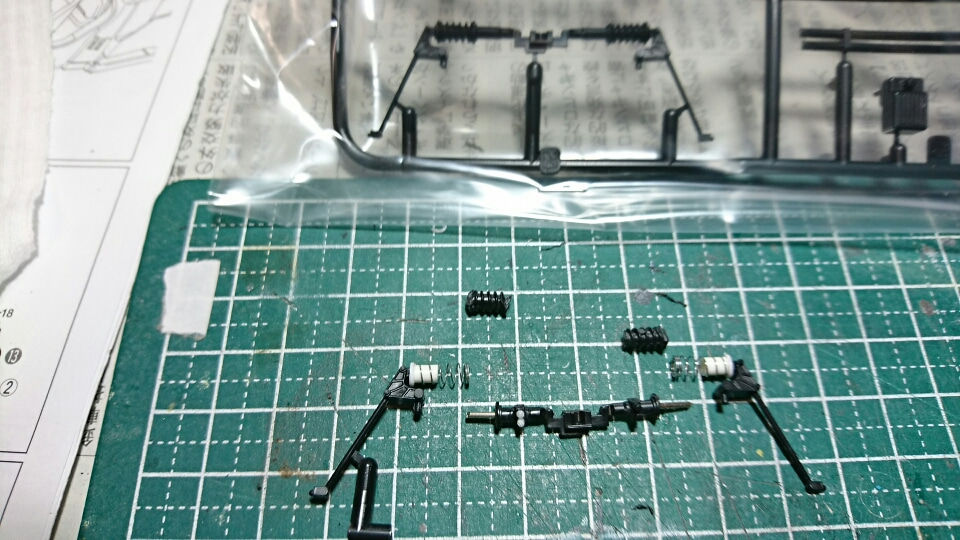

To the rear part of the air box, it is made to be able to install with 0.8 mm shaft striking

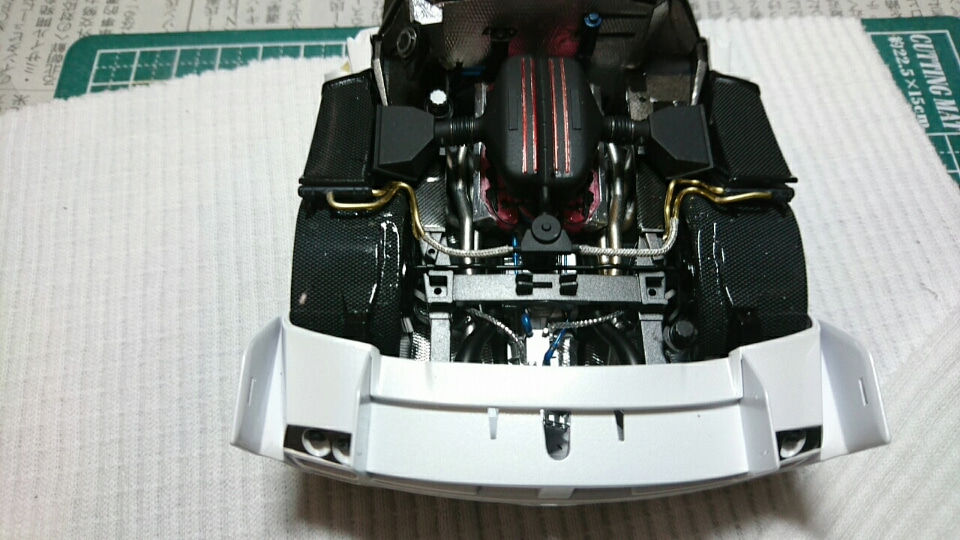

エンジンの方へ行く(実際にはエンジンの方からオイルクーラーへオイルが流れると思うのですが)パイプとホースの追加

エンジンのどの辺りからパイプが来てるのか？判らないので適当になってます(((^_^;)







This work is on 12/8

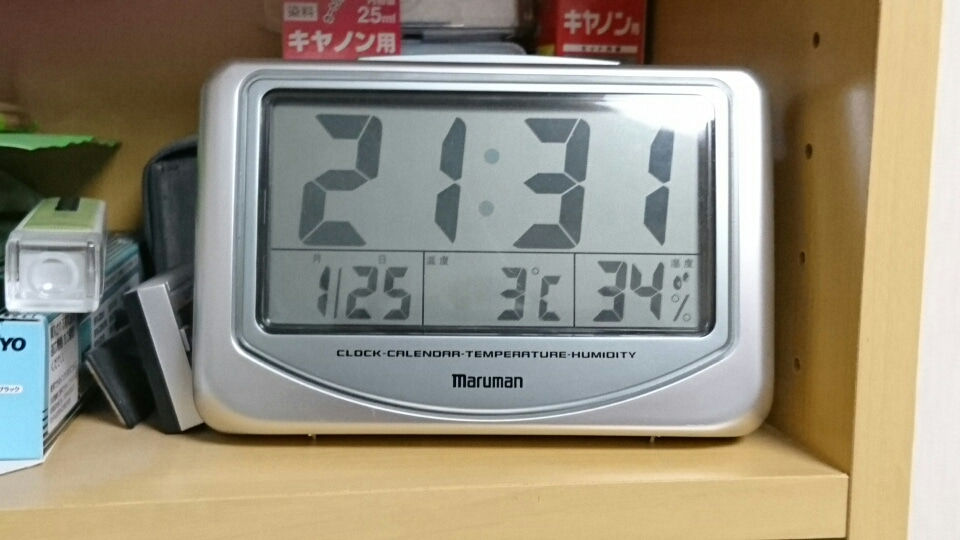

The temperature in my room is 7 degrees Celsius

Because the window is opened a little for the ventilation of the room

I guess it's like this

Of course the heating is not done

Since there is paint, it is impossible to use the oil fan heater because the fire is strictly prohibited

There is no air conditioner in my room

There are ceramic fan heater and electric stove, but

There are many things you do not use

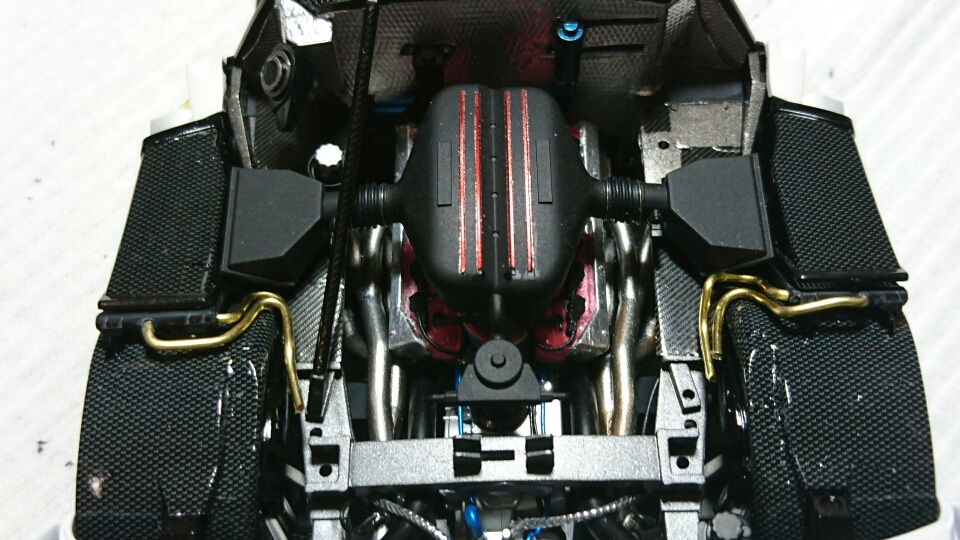

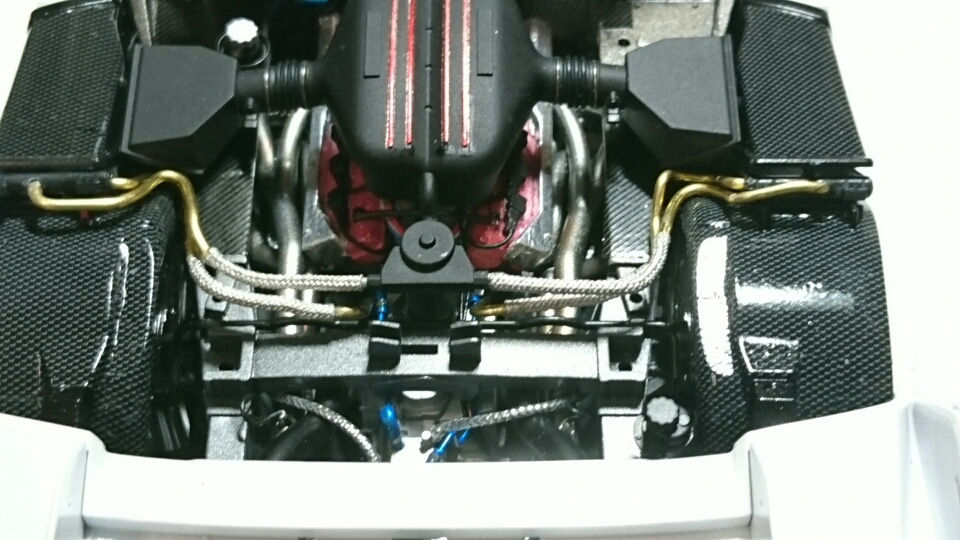

オイルクーラーに真鍮線を付けてますが当たらないように現物合わせで形を作ると時間が掛かりますね

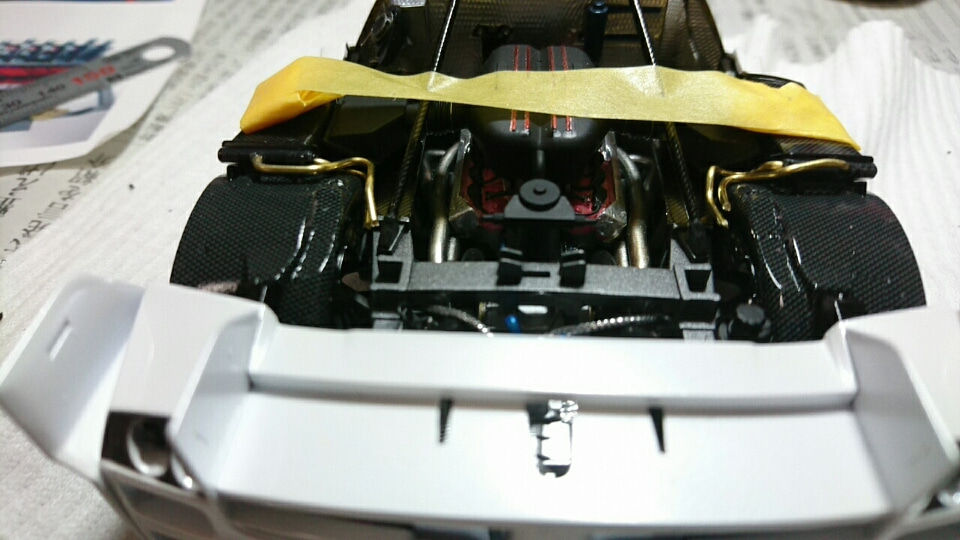

I attach a brass wire to the oil cooler, but it takes time to make a shape by matching the spot so that it does not hit it

This will give you a more realistic feeling



And it will be easier to paint differently





元の形はこちらです

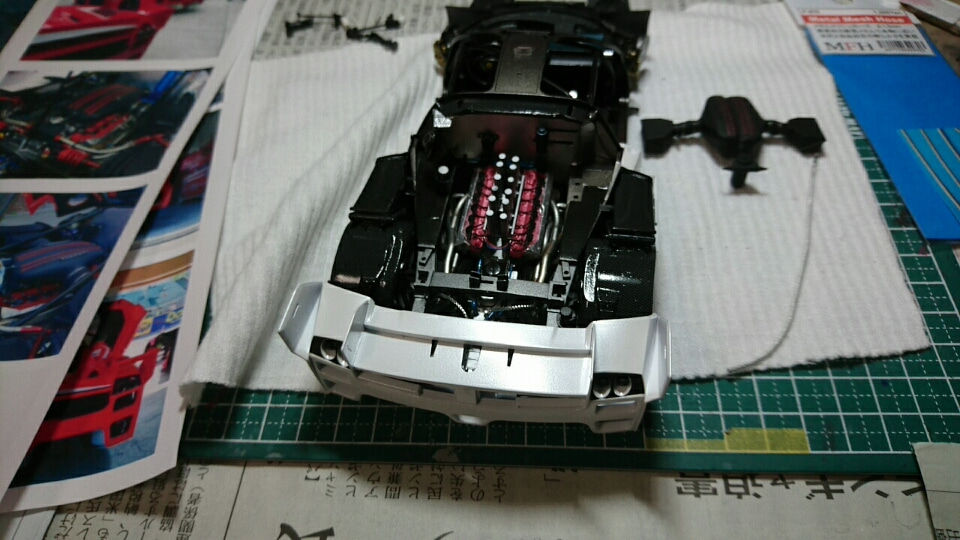

The original form is here
